Two freestanding and one inset. Each burns wood or smokeless solid fuel behind a large viewing window.
Belina is a range of three multi-fuel stoves: two freestanding and one inset. Each burns wood or smokeless solid fuel behind a large viewing window.
The freestanding models have a steel body with a cast iron door, finished in matt black. The inset fits a standard 16″ x 22″ fire opening and has a cast iron fascia. All three take a 125 mm (5″) flue and an external air supply.
Belina stoves are made by HÔTA, Belfast.
Freestanding for a chamber or hearth, in two sizes. Inset for an existing 16″ x 22″ opening.

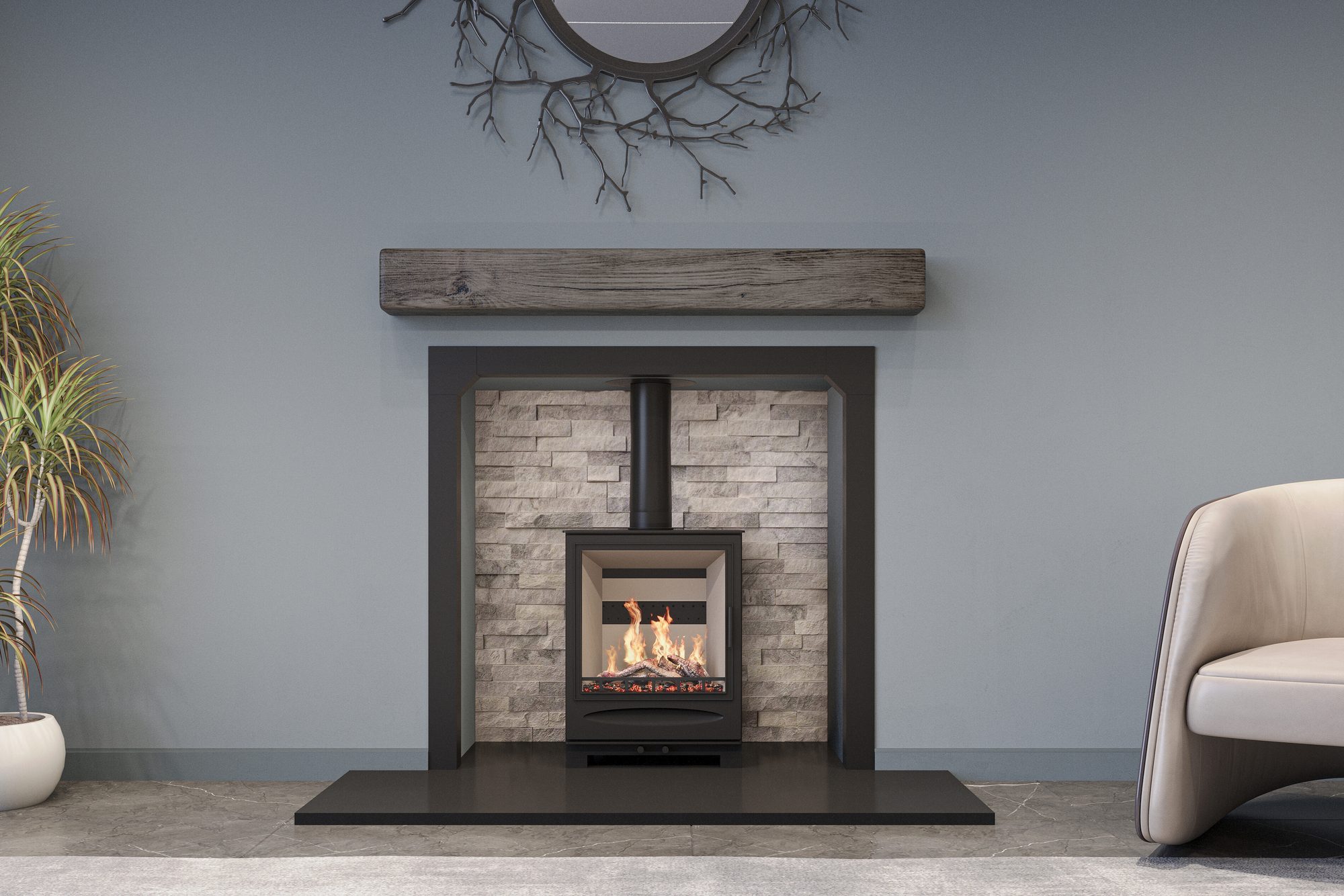

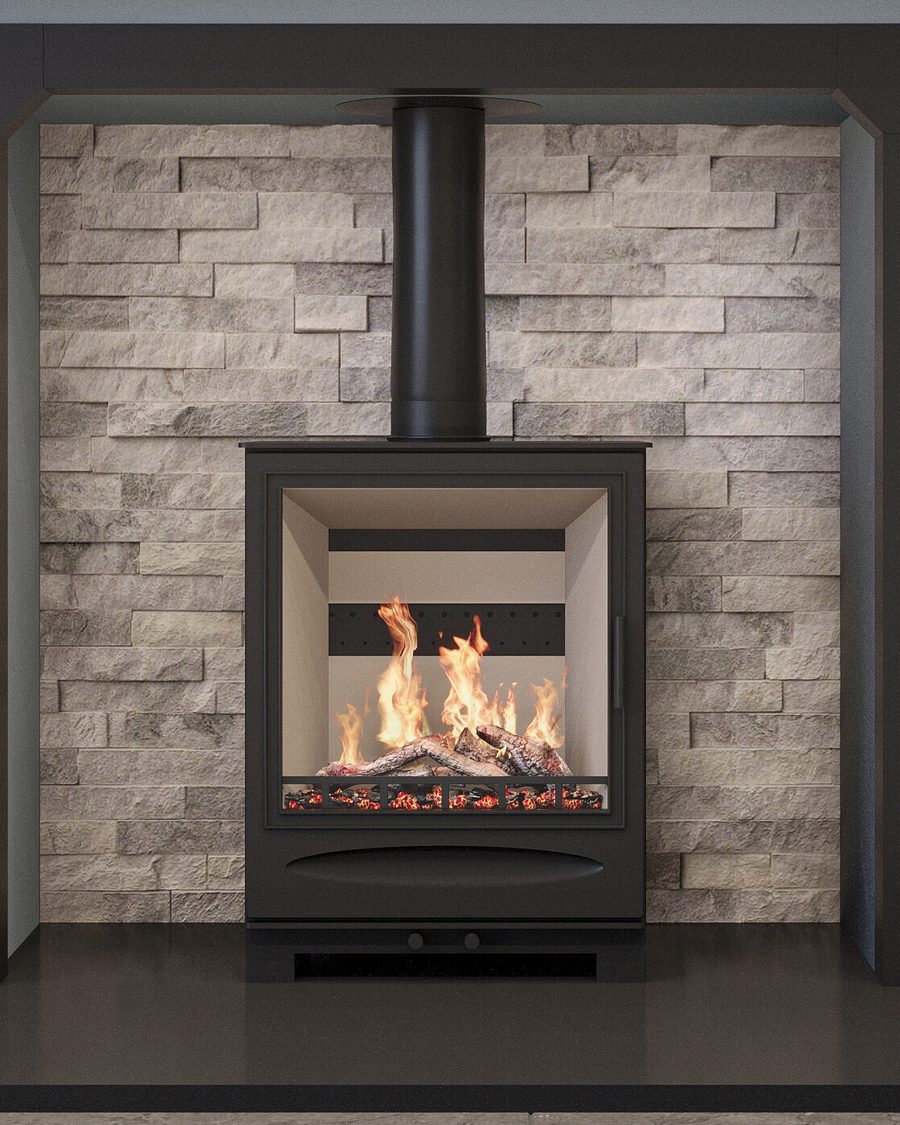

A compact 5 kW stove for smaller living rooms. It converts up to 82.5% of its fuel into heat and burns wood or smokeless solid fuel.
| Width | 420 mm |
| Height | 580 mm (excl. flue collar) |
| Depth | 310 mm (excl. handle) |
| Weight | 65 kg |
| Flue outlet | 125 mm (5″) |
| Smoke control | DEFRA approved |
| Ecodesign | Compliant |

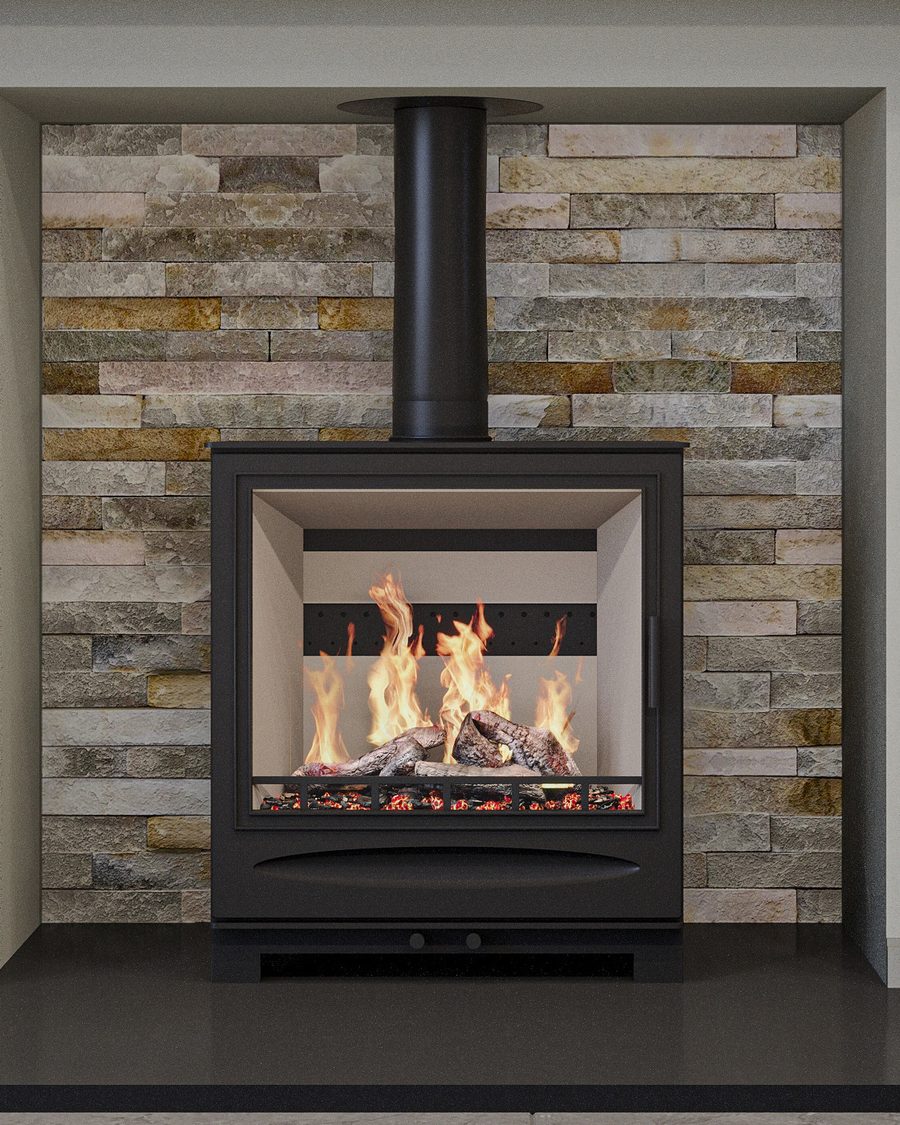

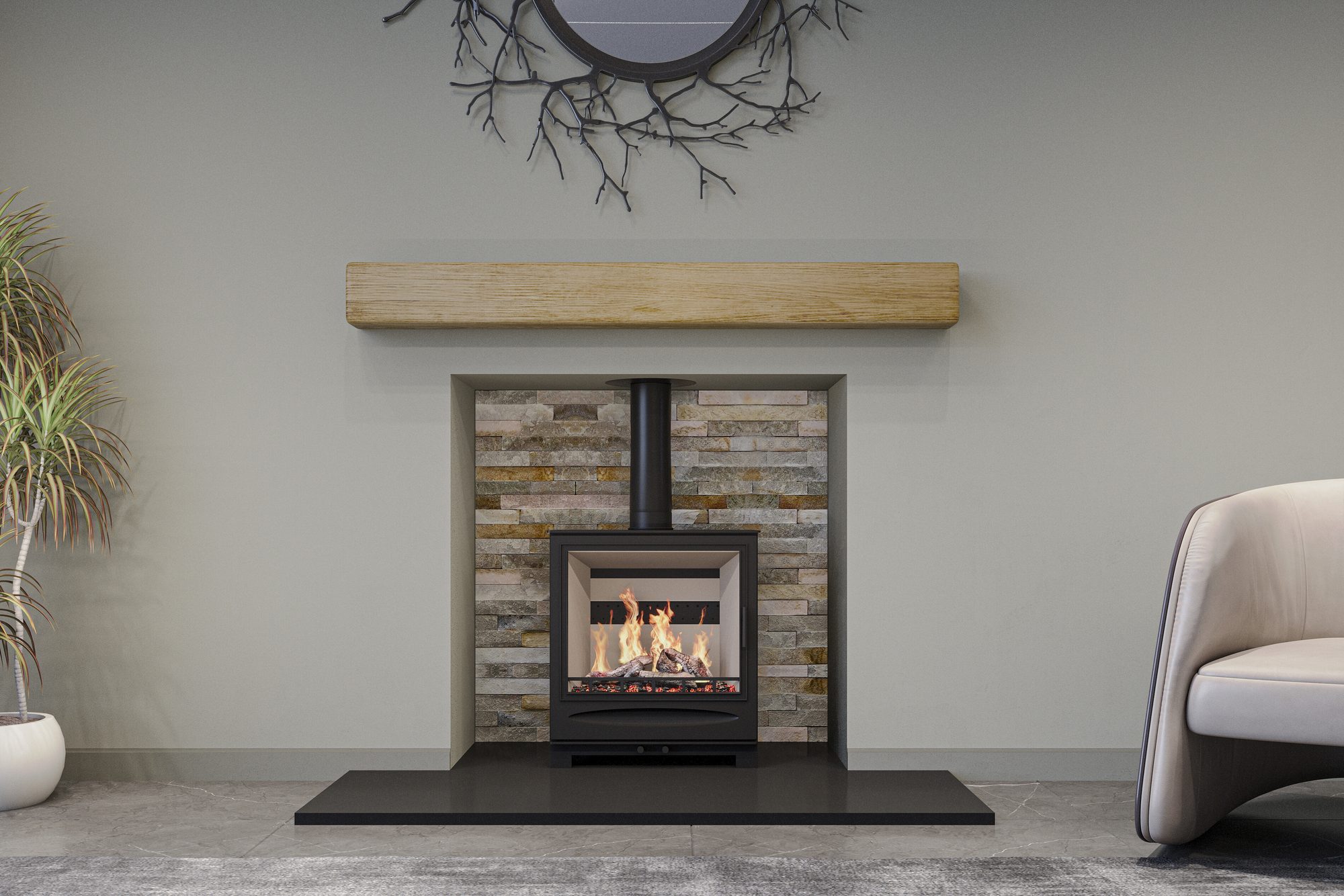

The larger freestanding model, at 8 kW, for bigger rooms and open‑plan spaces. Up to 79.4% efficient, with a wider firebox and window.
| Width | 490 mm |
| Height | 580 mm (excl. flue collar) |
| Depth | 310 mm (excl. handle) |
| Weight | 80 kg |
| Flue outlet | 125 mm (5″) |
| Smoke control | DEFRA approved |
| Ecodesign | Compliant |

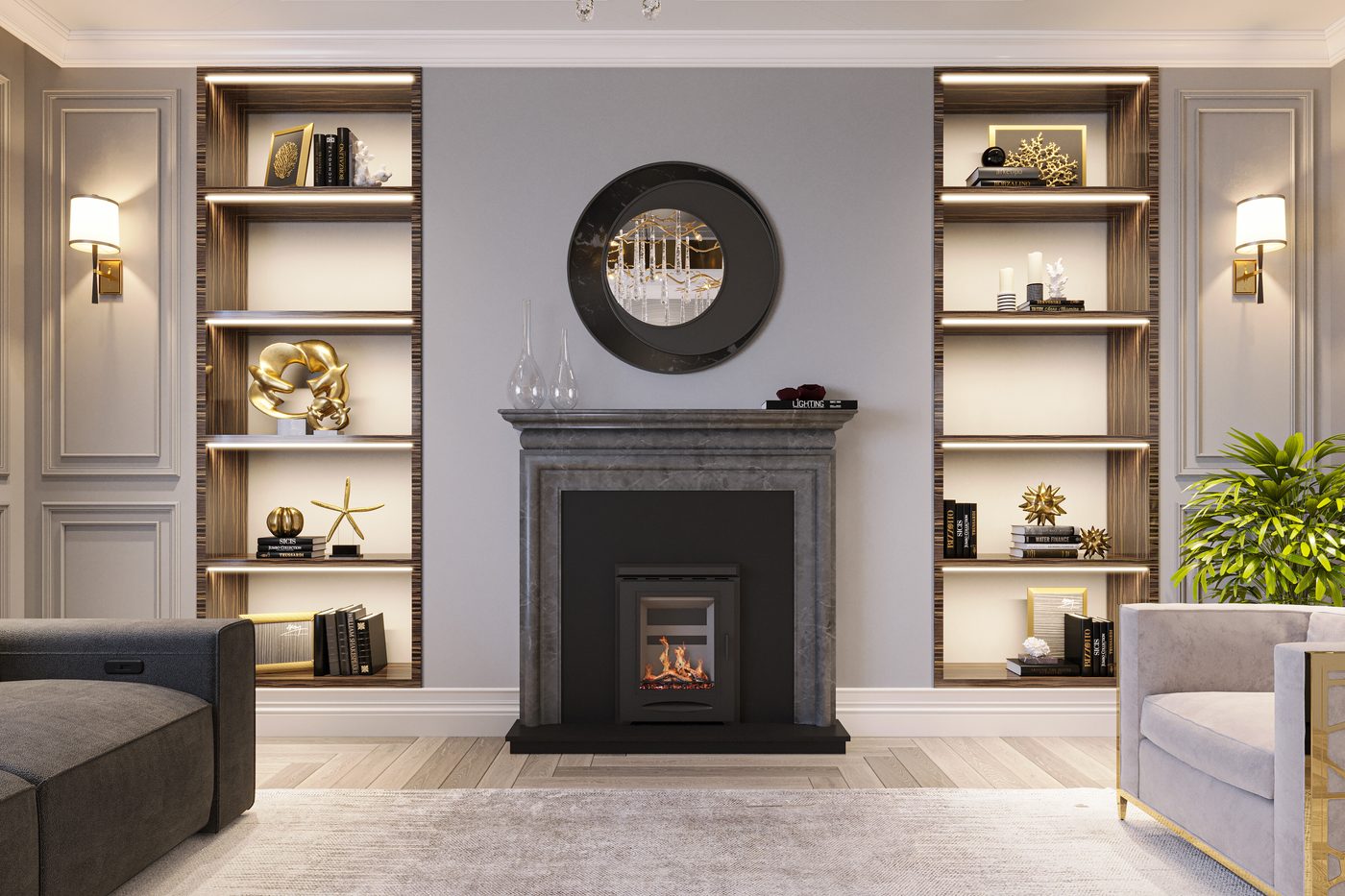

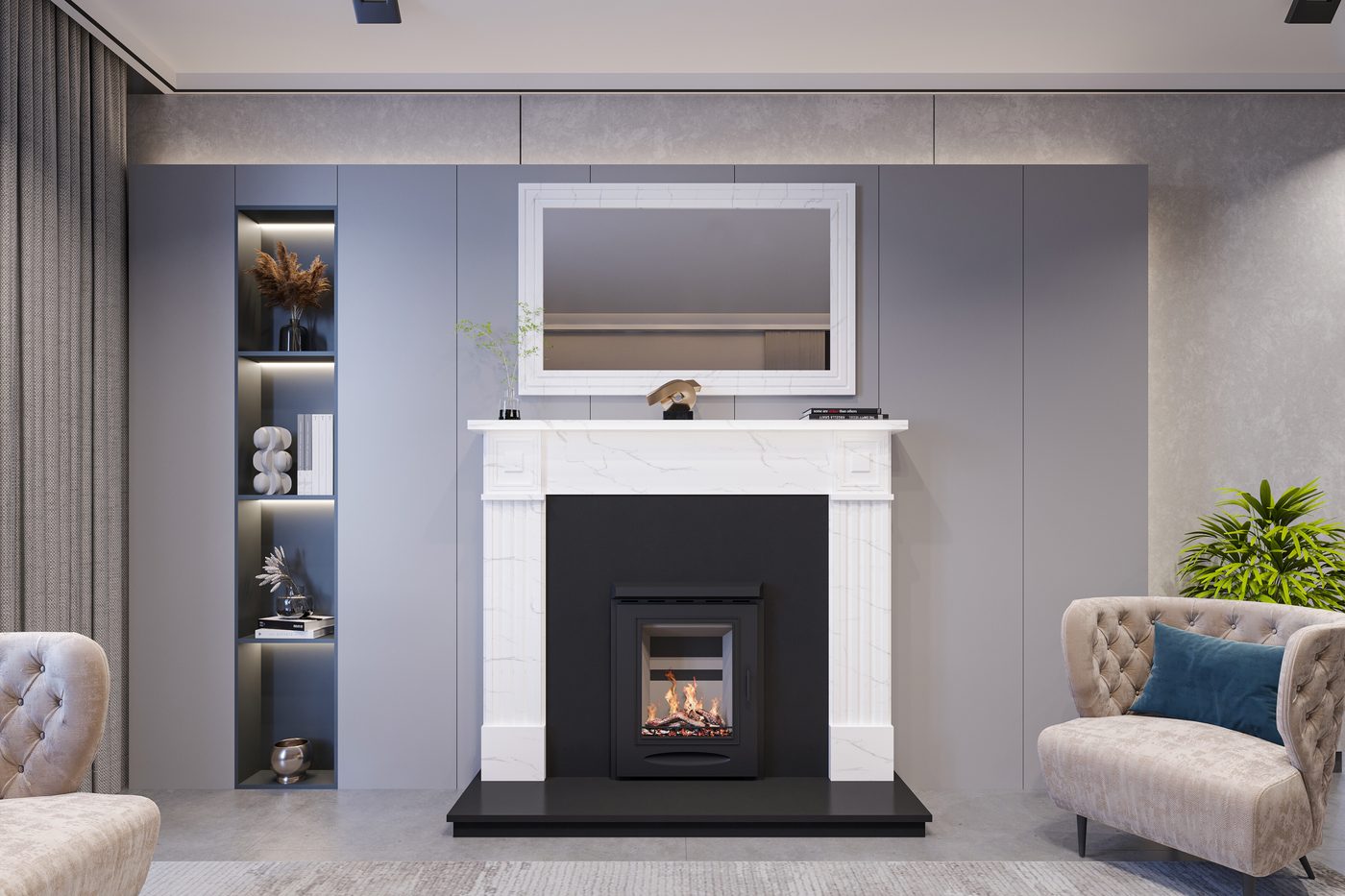

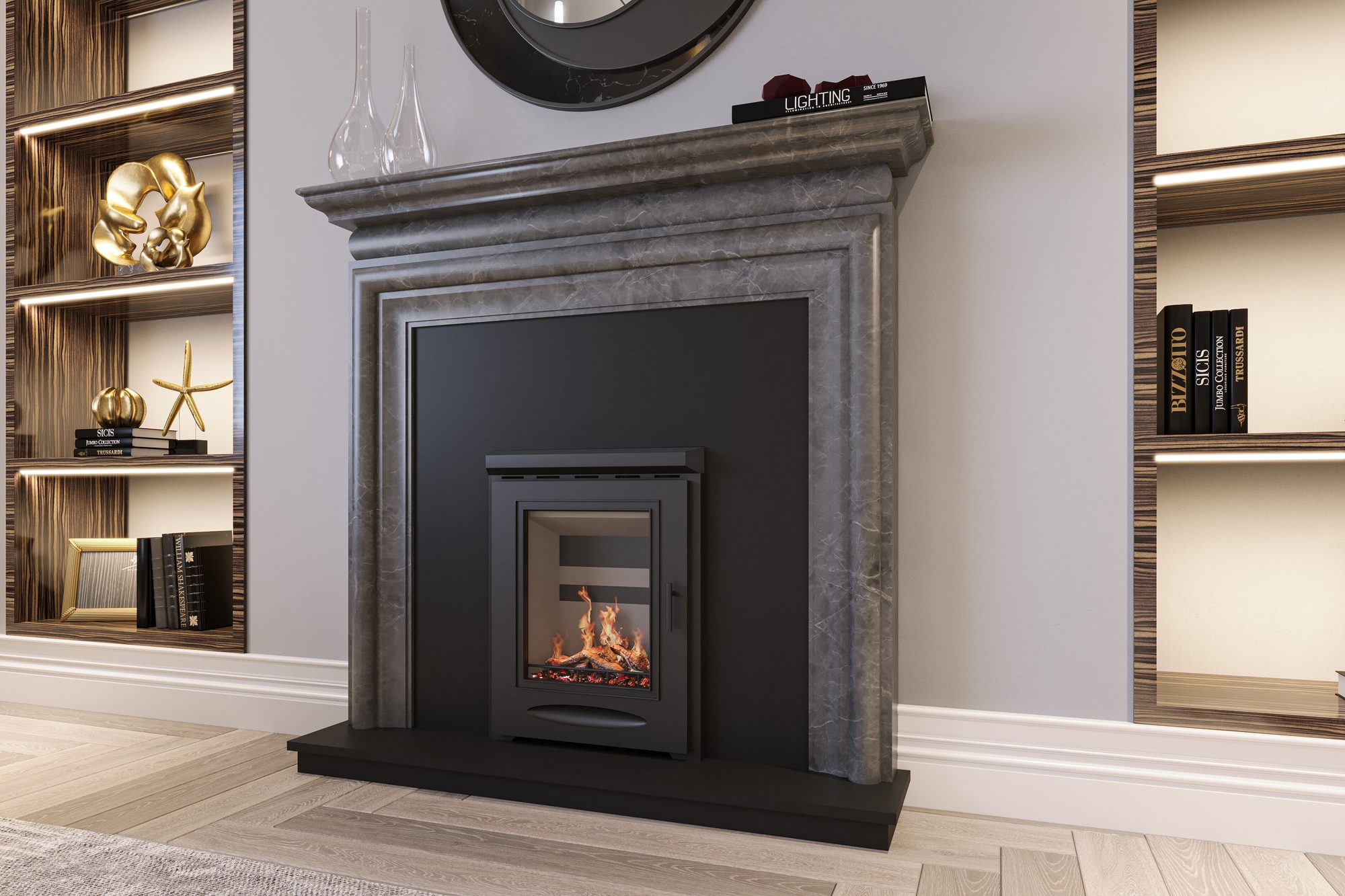

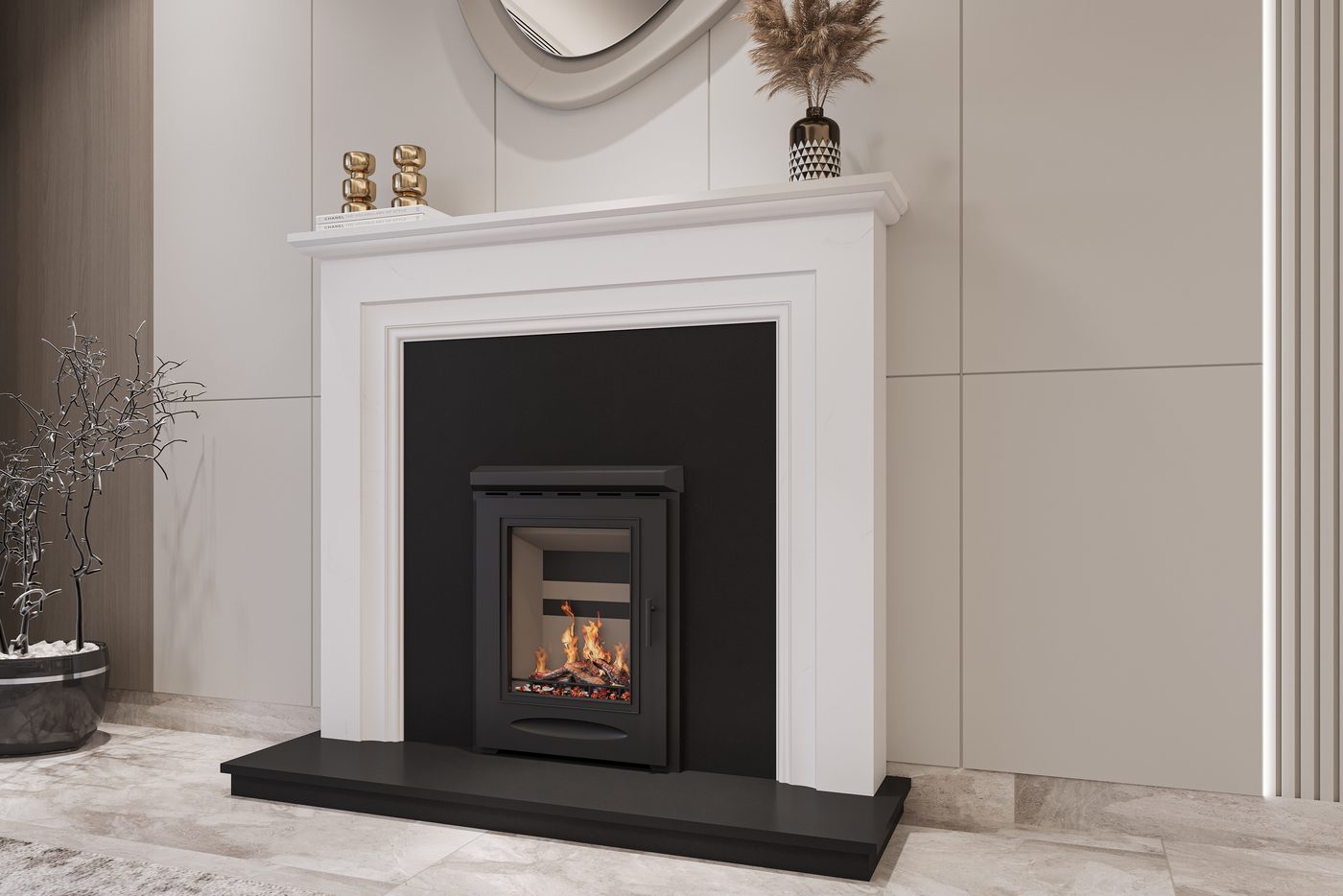

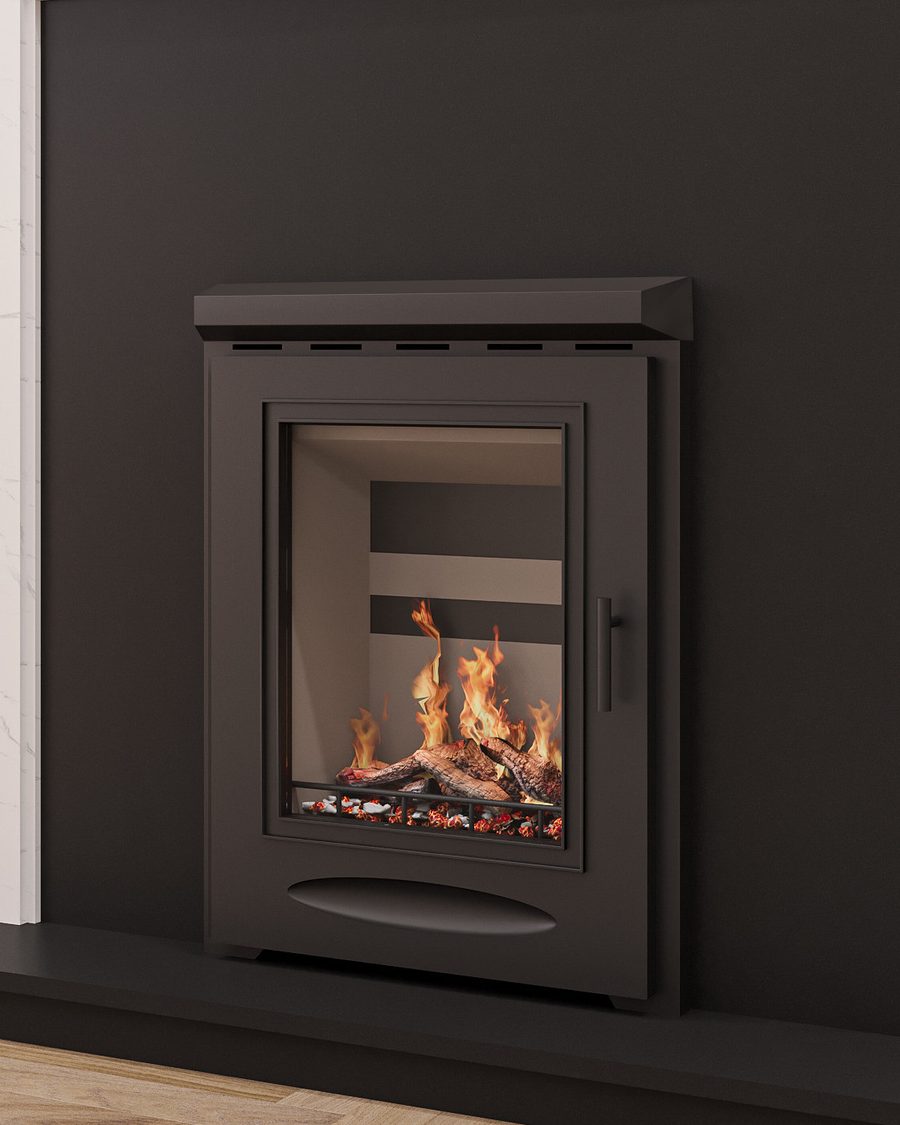

Made to fit a standard 16″ x 22″ fire opening, with a cast iron fascia. At 83.7%, it is the most efficient stove in the range.
| Width | 488 mm |
| Height | 604 mm |
| Depth inc. fascia | 400 mm |
| Fascia depth | 65 mm |
| Weight | 80 kg |
| Flue outlet | 125 mm (5″) |

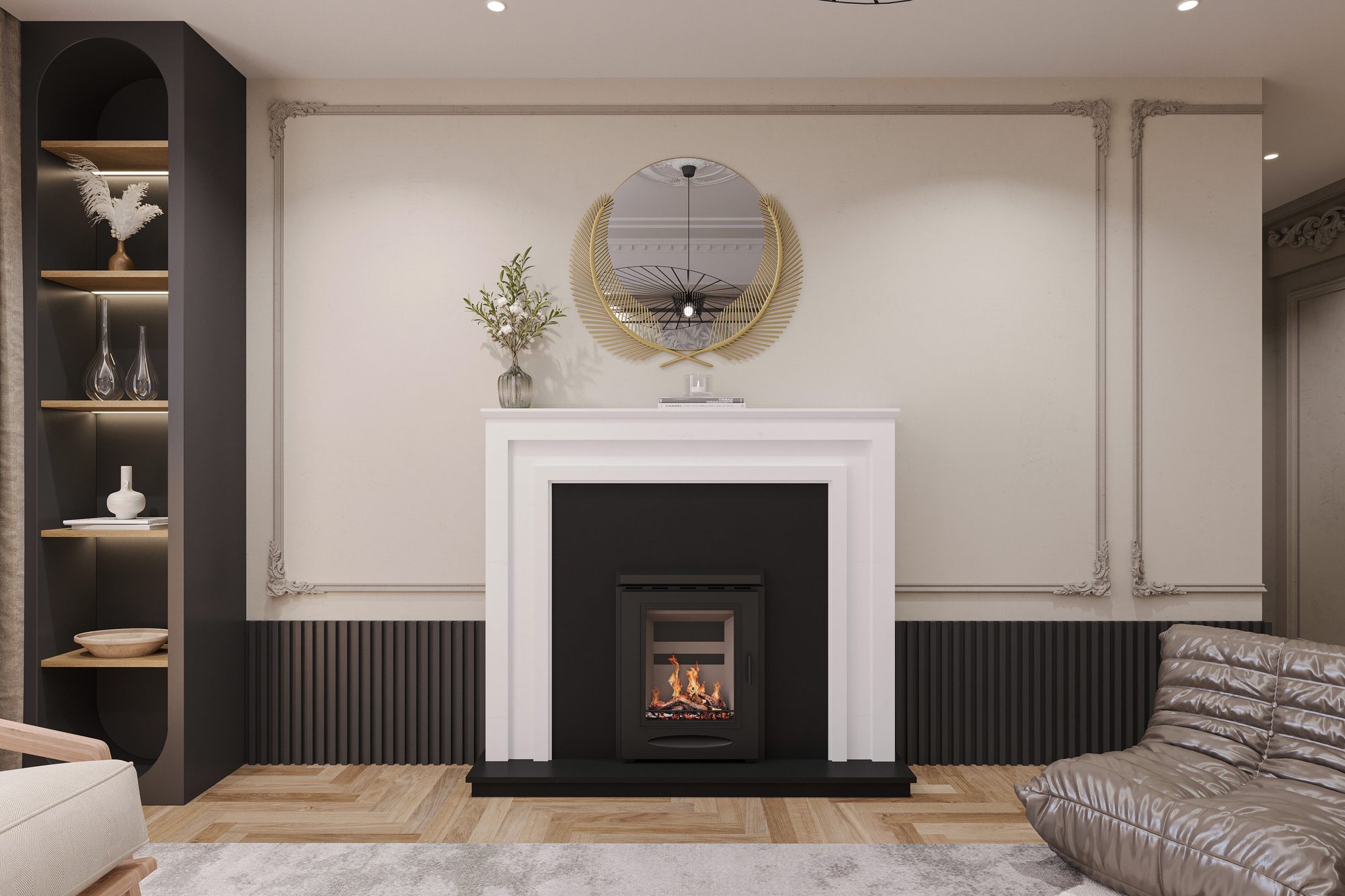

The cast iron fascia suits classic and modern fireplaces.

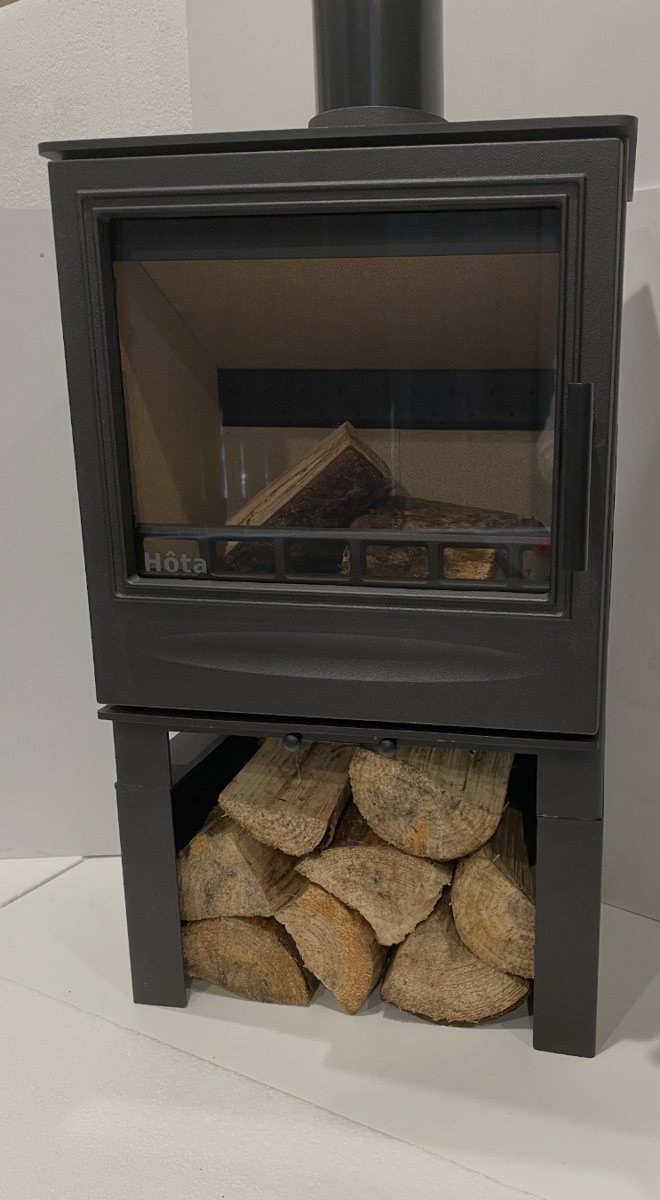

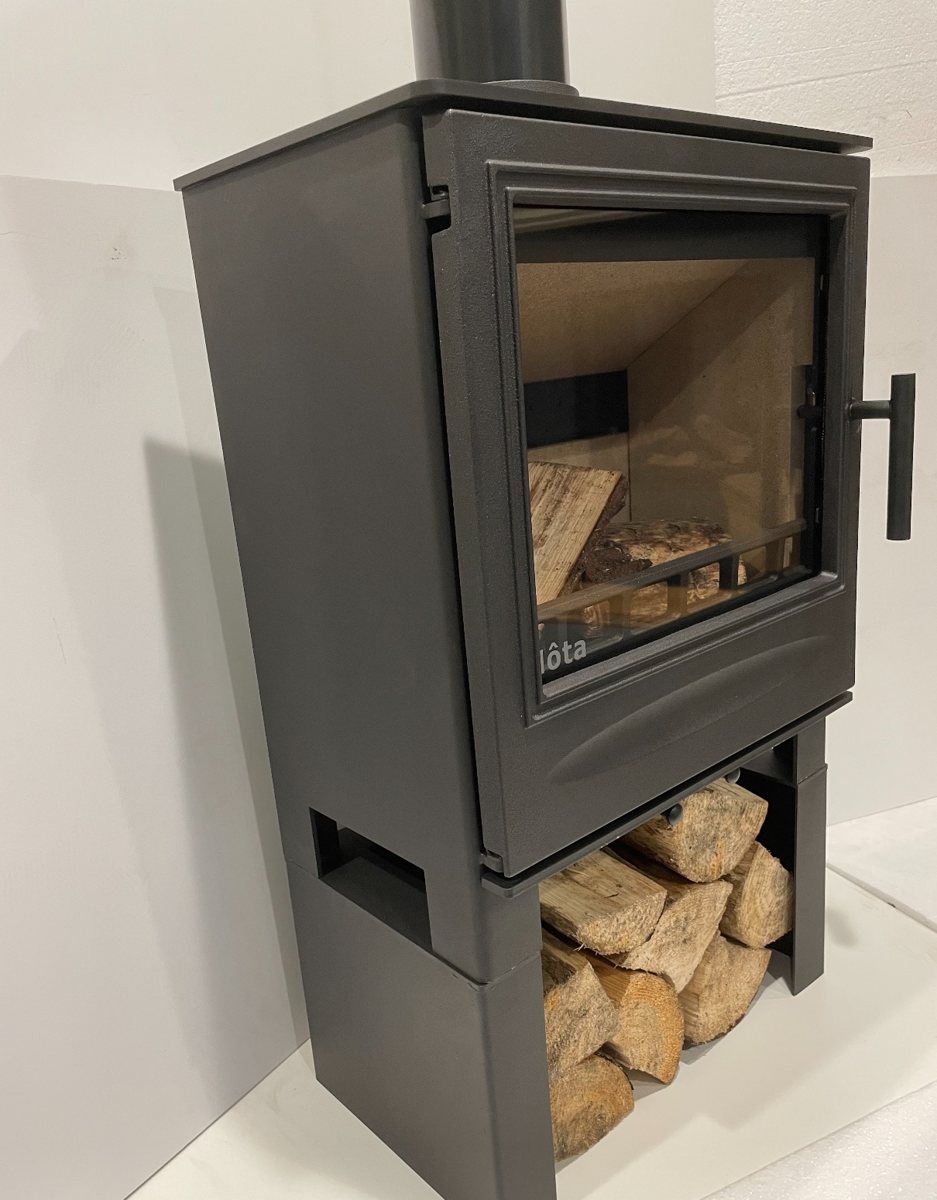

Matching log stores are available for the Belina 5 and Belina 8 freestanding stoves. The stove sits on top, raising it to a better viewing height, with dry log storage underneath.
Product codes: Belina - 5kw - logstore and Belina - 8kw - logstore.
Sizes, W x H x D:
Belina 5 log store: 408 x 245.5 x 279 mm
Belina 8 log store: 478 x 245.5 x 279 mm
| Belina 5Freestanding | Belina 8Freestanding | Belina 5Inset | |
|---|---|---|---|
| Performance | |||
| Nominal heat output | 5 kW | 8 kW | 5 kW |
| Efficiency (wood) | 82.5% | 79.4% | 83.7% |
| Fuel | Wood, smokeless solid fuel | Wood, smokeless solid fuel | Wood, smokeless solid fuel |
| Smoke control areas | DEFRA approved | DEFRA approved | DEFRA approved |
| Ecodesign | Compliant | Compliant | Compliant |
| Dimensions | |||
| Width | 420 mm | 490 mm | 488 mm |
| Height | 580 mm * | 580 mm * | 604 mm |
| Depth | 310 mm ** | 310 mm ** | 400 mm inc. fascia |
| Weight | 65 kg | 80 kg | 80 kg |
| Installation | |||
| Flue outlet | 125 mm (5″) | 125 mm (5″) | 125 mm (5″) |
| External air | Connection | Connection | Facility |
| Fire opening | n/a | n/a | 16″ x 22″ standard |
| Construction | |||
| Body | Steel, cast iron door | Steel, cast iron door | Steel, cast iron fascia |
| Finish | Matt black | Matt black | Matt black |
| Air system | Primary, secondary, tertiary | Primary, secondary, tertiary | Primary, secondary, tertiary, air wash |
| * Excluding flue collar (630 mm to top of collar). ** Excluding handle (371 mm including handle). | |||
Belina stoves carry a one-year guarantee from the date of purchase, in addition to statutory rights. Wearing parts (bricks, grate and baffle) and glass are not covered.
Install by a competent, registered installer in line with Building Regulations Approved Document J and the manufacturer’s instructions.
A carbon monoxide alarm must be fitted in the same room.
Belina stoves are made by HÔTA, Belfast, and are available through Midtherm.
For showrooms and retailers. For pricing, stock and delivery, contact the Midtherm sales team.
